Thermoplastic Welding Rods & Sheets

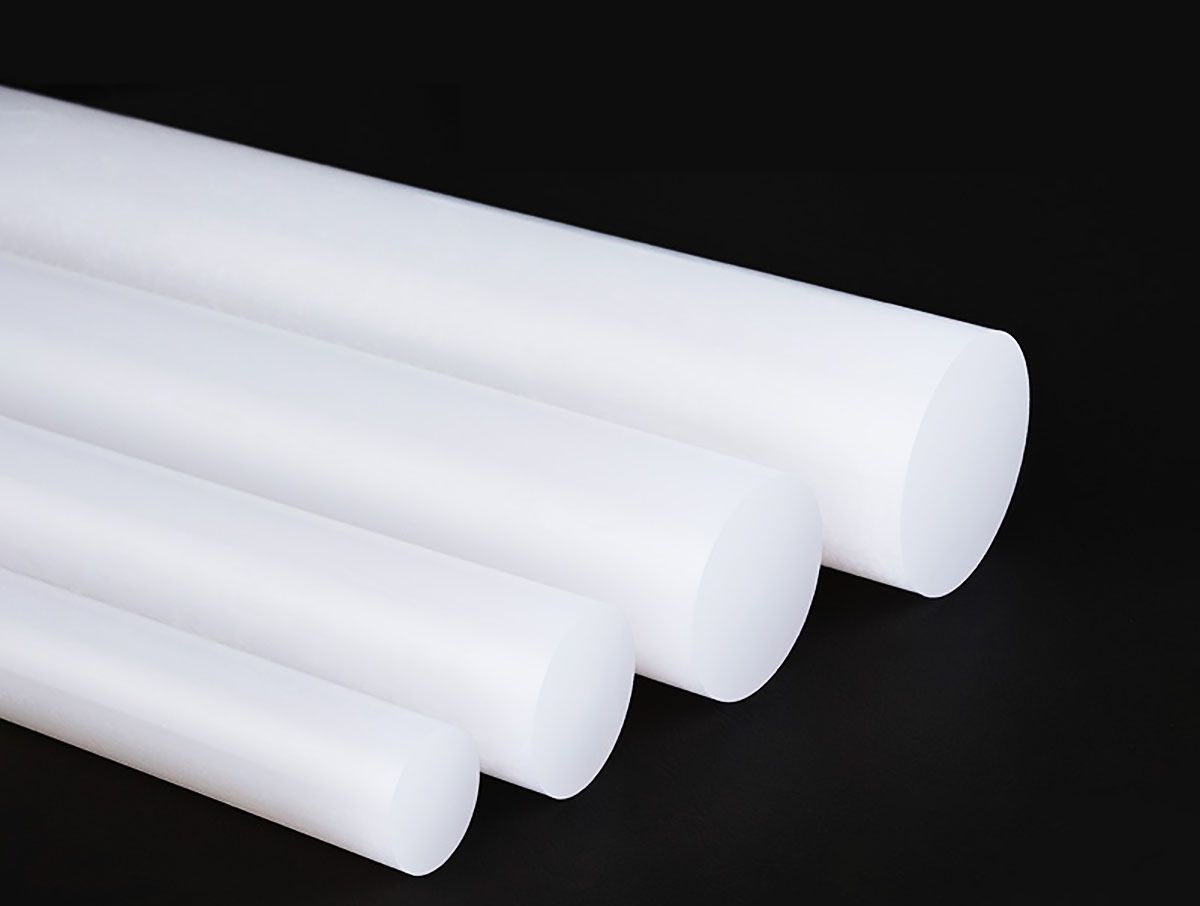

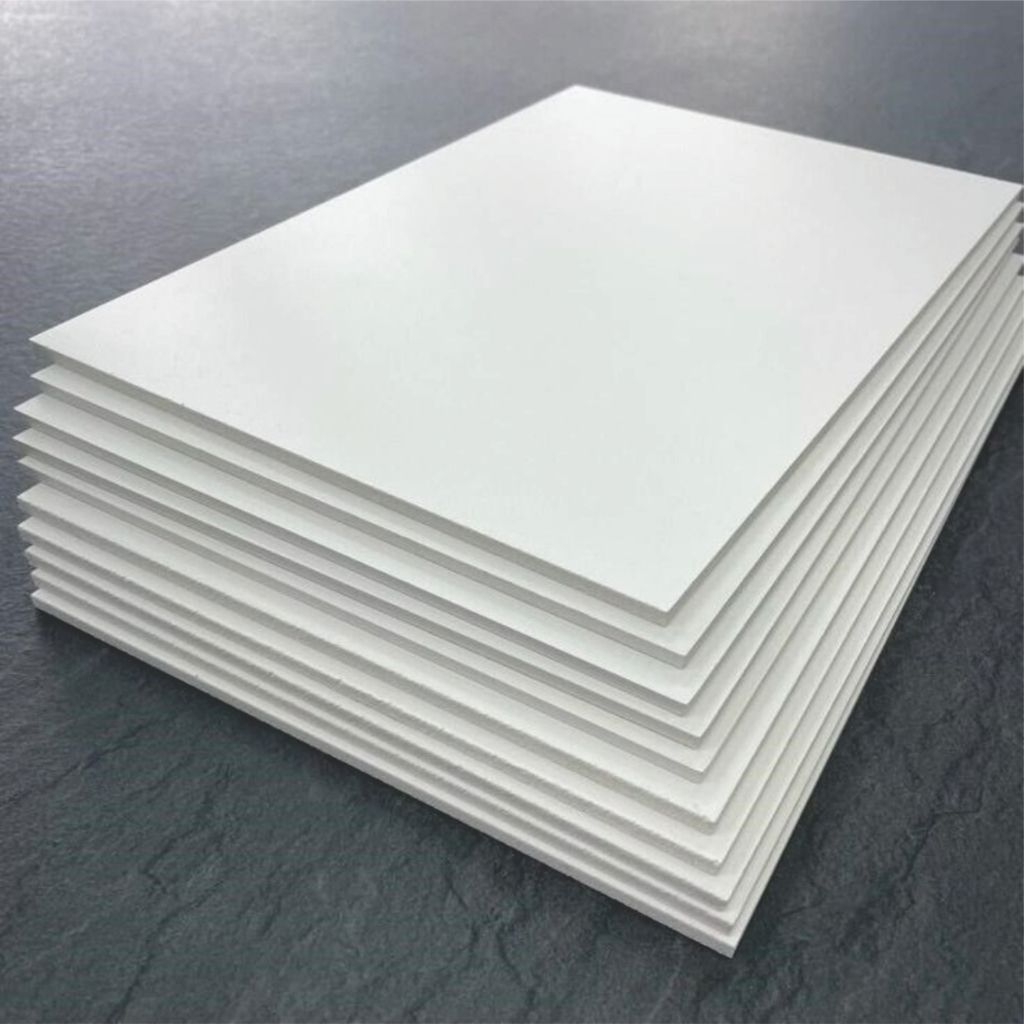

PVDF Rods & Sheets
We are a dependable PVDF rod supplier in the UAE, offering high-quality Polyvinylidene Fluoride (PVDF) rods designed for high-performance industrial applications.
Our PVDF rods are known for their excellent resistance to chemicals, strong mechanical properties, and stability under heat, making them suitable for use in challenging environments such as chemical processing, semiconductor manufacturing, and water treatment.
As a top supplier and distributor of PVDF rods in the UAE, we deliver products quickly, offer custom sizes, and maintain ISO-certified quality throughout all Emirates — including Dubai, Abu Dhabi, Sharjah, and the broader GCC region.
What is PVDF Rods & Sheets?
PVDF (Polyvinylidene Fluoride) rods are advanced thermoplastic materials that offer superior resistance to chemicals, acids, and solvents, along with great mechanical and thermal properties.
They maintain their structure even in extreme temperatures and harsh conditions, making them a popular choice for use in chemical, electrical, and industrial engineering applications.
PVDF rods are manufactured through precision extrusion and are available in various grades to ensure consistency, durability, and a high-quality surface finish for machined parts and industrial assemblies.
Sheets and Bars
Our semi-finished thermoplastic products are reliable and long-lasting solutions for building equipment and tanks, as well as creating wear-resistant components.
In industries such as chemicals, heavy manufacturing, and plant construction, there are many demands for materials that can resist acids and alkalis, handle temperature fluctuations, and prevent static buildup in potentially explosive environments (ATEX). Over the years, plastic sheets, welding rods, and solid rods made from materials like HDPE, PP, PVDF, ECTFE, FEP, and PFA have been widely used successfully in these areas.
Our team is available to provide tailored advice for your specific project needs in the UAE, Saudi Arabia, Oman, Kuwait, and Bahrain.
Semi-Finished Supply Program
HDPE, PP, PVDF, ECTFE, FEP, and PFA
Sheets, bars, and welding rods for extreme applications are made from materials such as PP, PE, PPs, PPs-el, HDPE, HDPE-el, PVDF, ECTFE, FEP, and PFA.
These are used for lining tanks and in apparatus engineering. Their strong resistance to acids and alkalis leads to lower lifetime costs due to longer maintenance intervals and extended product life. We provide thermoplastic solutions that can withstand temperatures ranging from -200 °C to +260 °C.
ABS Rods & Sheets
We are a leading ABS rod supplier in the UAE, offering high-quality Acrylonitrile Butadiene Styrene (ABS) rods that are strong, rigid, and easy to machine.
ABS rods are among the most commonly used engineering plastics due to their excellent impact resistance, dimensional stability, and cost-effectiveness. We supply ABS rods in a variety of diameters, lengths, and colors, ideal for machining, prototyping, and industrial applications.
With fast delivery across the UAE and options for custom fabrication, we ensure that our products deliver reliable performance and strong service support for your business.
What is ABS Rods & Sheets?
ABS rods are solid cylindrical thermoplastic materials made from a blend of Acrylonitrile, Butadiene, and Styrene polymers.
This special composition offers a good balance of toughness, rigidity, and chemical resistance, making ABS an excellent choice for engineering and mechanical parts.
ABS rods are lightweight, durable, and easy to machine, delivering great results for turning, milling, drilling, and CNC machining.
These rods are also electrically insulating and can be painted, glued, or welded, offering versatility for a variety of uses.
Key Features of ABS Rods & Sheets
- High impact and tensile strength
- Excellent machinability for CNC, drilling, or cutting
- Good dimensional stability and low water absorption
- Electrical insulation and non-toxic properties
- Resistant to acids, alkalis, and oils
- Lightweight and cost-effective
- Suitable for painting, gluing, and welding
- Available in multiple colors and grades
- Provides excellent surface finish for both aesthetic and industrial parts

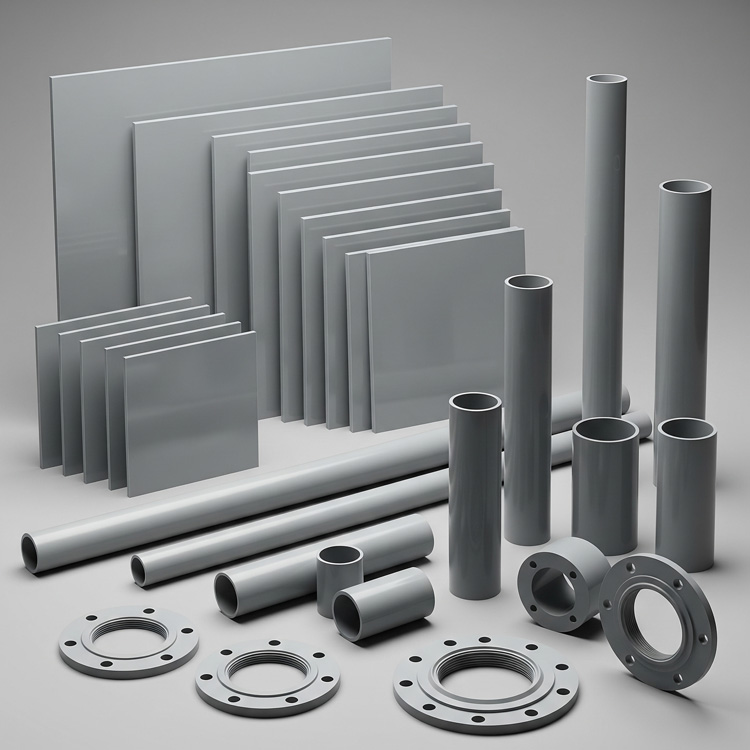

CPVC Sheets
CPVC Sheets are known to work at temperatures as high as 95⁰C. This makes these sheets highly useful in applications involving very high temperature. CPVC Sheets find usage in various chemical process applications and plating industry. CPVC Sheets are very tough and have high resistance to heat and chemicals. They are self-extinguishing and have very low smoke property. This property enables CPVC Sheets to be used in various fire extinguishing applications also.
Key Features:
- Tough and durable
- High resistance to heat
- Highly resistant to chemicals
- Self extinguishing
- Low moisture absorption
- High electrical insulation
- High tensile strength
- Light weight
- Good di-electric properties
- Good resistance to corrosion
- Easy weldability
Standard Sizing: –
Thickness (in mm) | Width x Length (in m) | Packing |
0.2-1 | – |
10 Pcs |
2 |
1.22 x 2.44 | |
3 | ||
4 | ||
5 | ||
6 | ||
8 | ||
10 |
Colours: Grey, Dark Grey
Typical Properties
Properties | Test Method | Unit | Value |
Deflection Temperature under Load (264 psi, annealed) | ASTM D648 | ⁰C | 90 |
Impact, Izod, notched | ASTM D256 | Ftlbs/in | 10.0 |
Tensile Strength at Yield | ASTM D638 | psi | 7300 |
Tensile Modulus | ASTM D638 | psi | 390,000 |
Flexural Strength | ASTM D790 | psi | 12,700 |
Flexural Modulus | ASTM D790 | psi | 382,000 |
Coefficient of Linear Expansion | ASTM D696 | In/in⁰C | 7.0 x 10-5 |
Rockwell Hardness | ASTM D785 | R Scale | 117 |
Specific Gravity | ASTM D792 |
| 1.47 |
Flammability | UL-94 (tested, not listed) |
| V-0 |
Cell Classification | ASTM D1784 |
| 24446 |
Typical Applications:-
- Plating chemical tanks and vessels
- Chemical Process Industry
- Paper and pulp Industry
- Electroplating Industry
- Wastewater Treatment
- Scrubbers and Fume Hoods
- Electrical Cabinets
- Striping Tanks

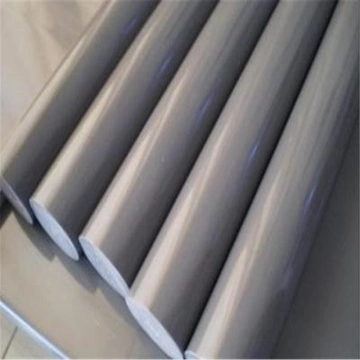

CPVC Rods & Sheets
FEATURES:
- Standard Sizing for compatibility with all welding equipment
- Best weldability
- Variety of shapes and colours to suit the job
- Lightweight material and convenient packing options
- Good Machineability
- No porosity issues
APPLICATIONS:
- Fabrication of Plastic Components
- Chemical Storage Vessel Construction
- Repair work on Leaks or broken parts
- Joining Piping System
- Extrusion welding
- Hot Air Gun Welding
- Machined parts
TECHNICAL: –
Property | Test Method | Unit | Value |
Specific Gravity | ASTM D792 | g/cm³ | 0.645 |
Shore hardness | ASTM D785 | Shore D | 119 |
Notched Izod Impact | ASTM D256 | J/m | 80 |
Tensile Strength | ASTM D638 | N/mm2 | 55 |
Tensile Modulus | ASTM D638 | N/mm2 | 2500 |
Strength Strength | ASTM D790 | N/mm2 | 104 |
Strength Modulus | ASTM D790 | N/mm2 | 2860 |
Compressive Strength | ASTM D695 | N/mm2 | 70 |
Compressive Modulus | ASTM D695 | N/mm2 | 1350 |

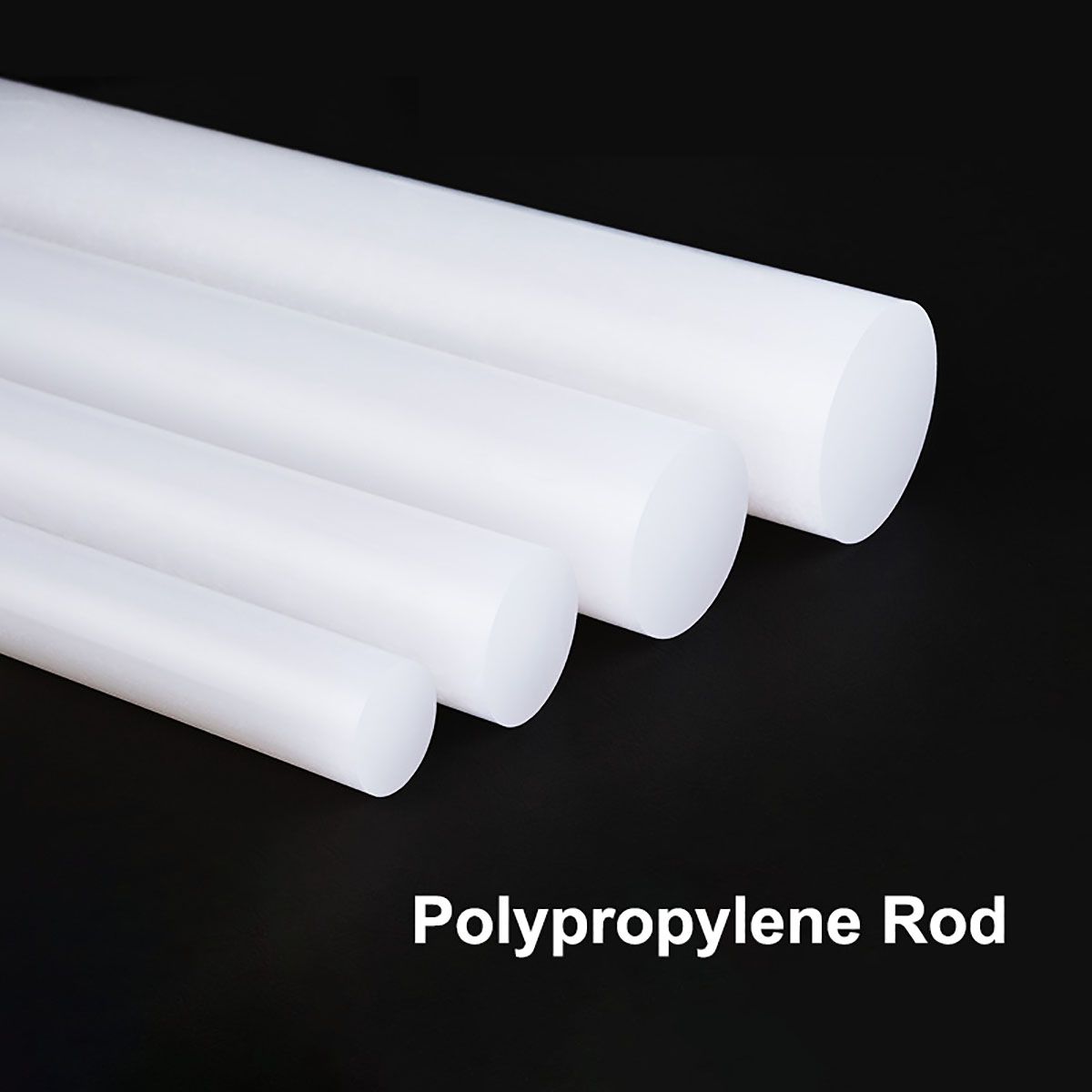

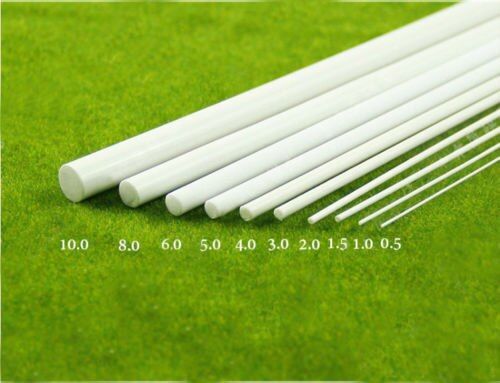

PPH Rods & Sheets
FEATURES:
- Standard Sizing for compatibility with all welding equipment
- Best weldability
- Variety of shapes and colours to suit the job
- Lightweight material and convenient packing options
- Good Machineability
- No porosity issues
APPLICATION:
- Fabrication of Plastic Components
- Chemical Storage Vessel Construction
- Repair work on Leaks or broken parts
- Joining Piping System
- Extrusion welding
- Hot Air Gun Welding
- Machined parts
TECHNICAL: –
Property | Test Method | Unit | PP-H |
Specific Gravity | ISO 1183 | g/cm³ | 0.9 |
Max. permissible service temp | – | ⁰C | 5 to 100 |
Tensile strength at yield | ISO 527 | Mpa | 31 |
Elongation at break | ISO 527 | % | ≥400 |
Impact strength | ISO 179 | kJ/m2 | No Break |
Modulus of elasticity | ISO 527 | Mpa | 1400 |
Coef. Of linear therm. Expansion | DIN 53752 | K-1 x 10-4 | 1.5 |
Vicat softenig Temp | ISO 527 | ⁰C | 150 |
Shore Hardness | ISO 868 | Shore D | 70 |
HDPE Rods & Sheets
FEATURES:
- Standard Sizing for compatibility with all welding equipment
- Best weldability
- Variety of shapes and colours to suit the job
- Lightweight material and convenient packing options
- Good Machineability
- No porosity issues
APPLICATION
- Fabrication of Plastic Components
- Chemical Storage Vessel Construction
- Repair work on Leaks or broken parts
- Joining Piping System
- Extrusion welding
- Hot Air Gun Welding
- Machined parts
TECHNICAL:
Property | Test Method | Unit | Value |
Thickness | – | mm | 4 ± 0.20 |
Density | ISO 1183 | g/cc | > 0.940 |
Tensile Strength at Yield | ISO 527 | N/mm2 | >12 |
Elongation at Yield | ISO 527 | % | >8 |
Elongation at Break | ISO 527 | % | >600 |
Melt Flow Rate | ISO 1133 | g/10 min | < 1.1 |
Oxidation Induction Time(2100c) | ISO 11357-6 | minute | >20 |
